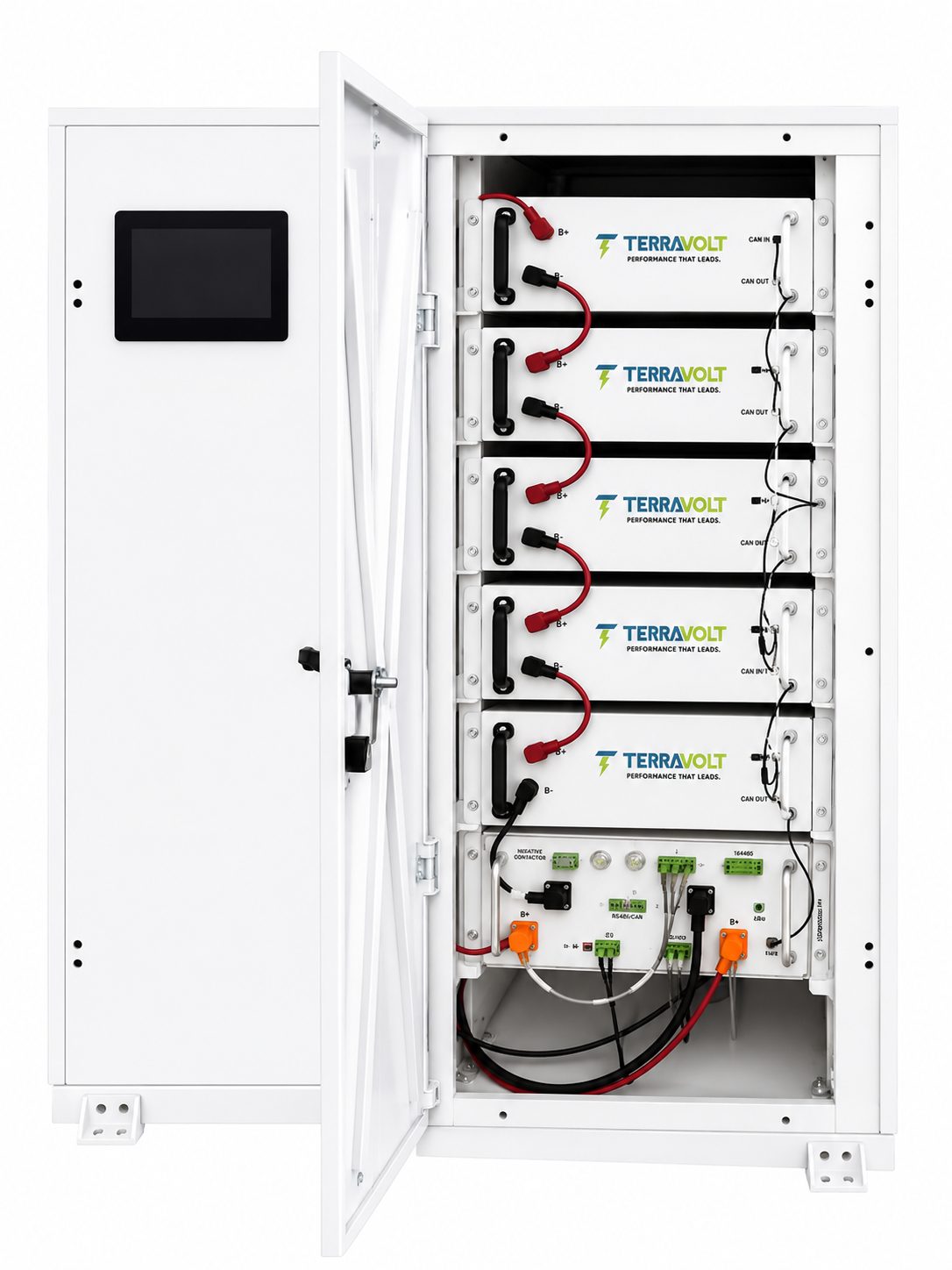

Battery Configuration :
Battery Chemistry :
LiFePO₄ (Lithium Iron Phosphate)
Battery Capacity :
100Ah
Nominal Voltage :
512V
Total Energy :
51.2kWh
Operating Voltage Range :
448V – 584V
Max charging current :
50A
Max Discharging current :
100A
Cycle Life :
≥4000 Cycles (25 ⁰C, 0.5C Chg. & Dis chg., 70% EOL)
Depth of Discharge (DoD) :
90%
Communication Protocol :
CAN / RS485 / Modbus
Safety Protection :
OV, UV, SC, OC, OT
System Expansion :
Scalable Architecture

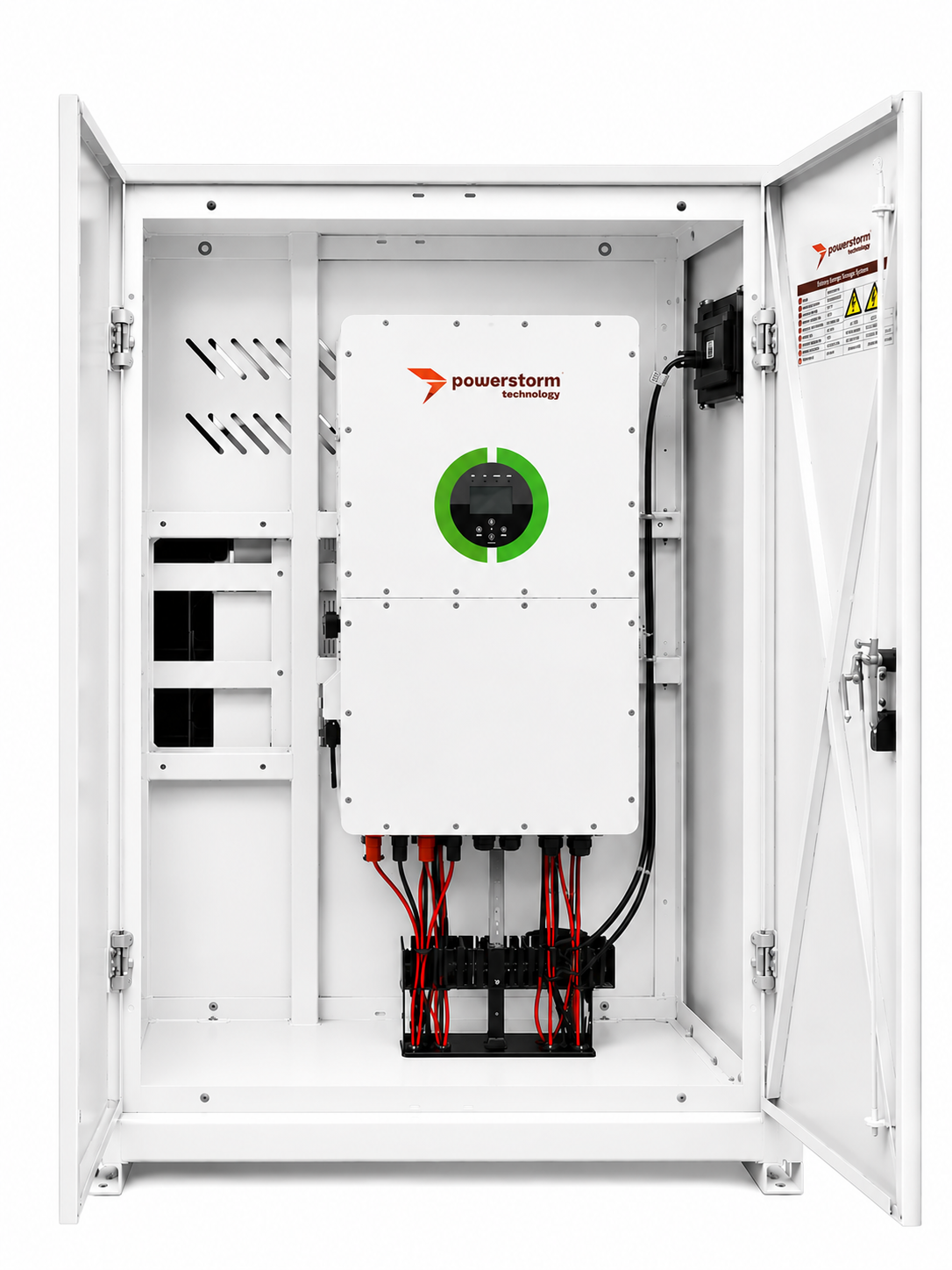

Inverter Configuration :
Inverter Type :
3-Phase HV (Hybrid)
Rated Inverter Power :
50KW
Rated AC Voltage :
3P+N+PE, 230/400V
Rated AC frequency :
50-60 Hz
Rated AC Output Current :
72.5A
Power factor :
0.8 leading to 0.8 lagging
Communication with BMS :
RS485, CAN
Battery voltage range :
160v ̴ 800v
Max. Charging current :
50A + 50A
Max. Discharging current :
50A + 50A
General Data :
Dimensions (LxWxH) :
1250x1200x1750 (mm)
Weight :
1000kg ± 5%
Protection Level :
IP54
Operating Temperature :
-10°C to 55°C

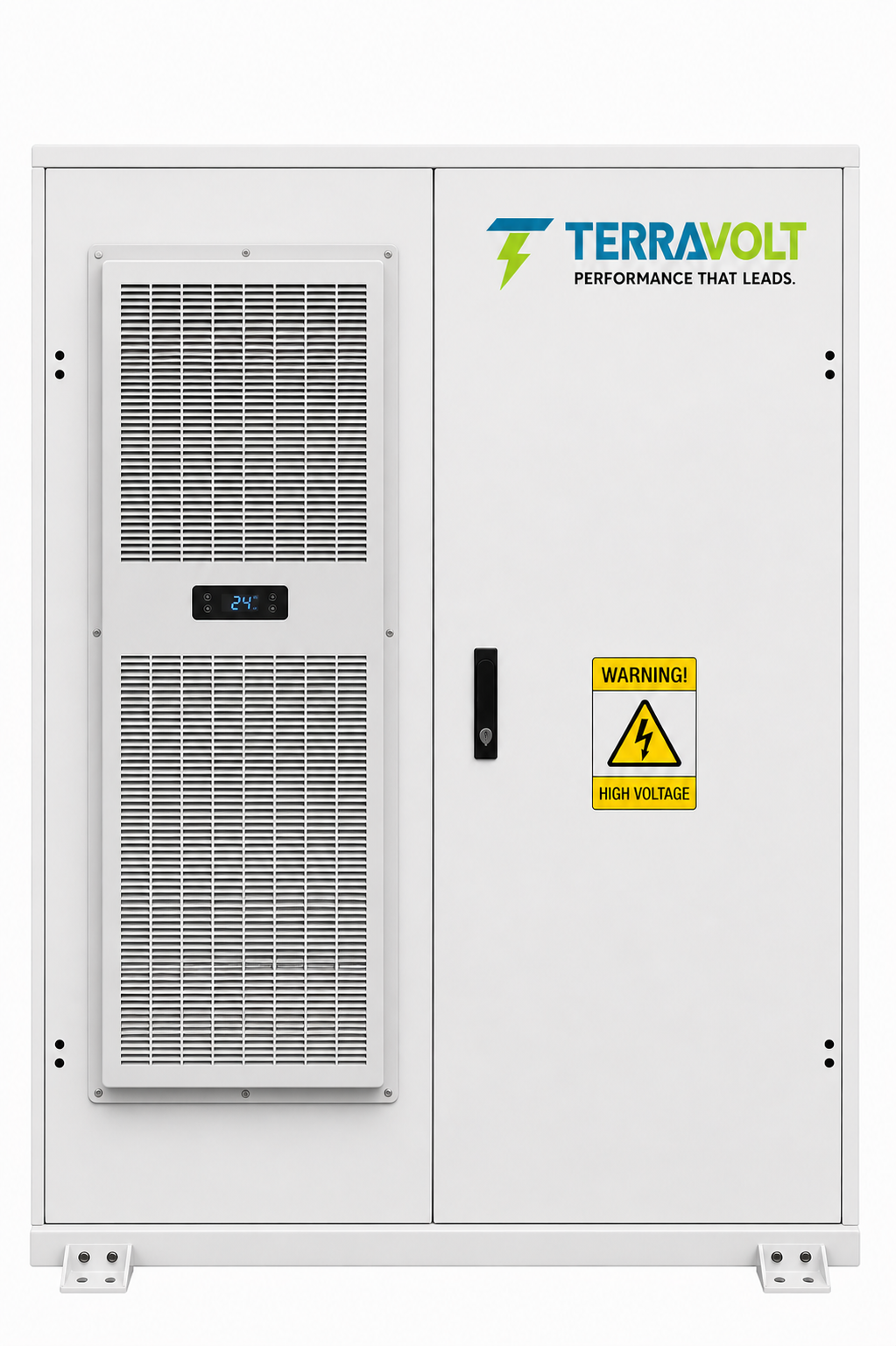

Cooling Method :
Air Cooling
Installation Type :
Floor Mounted
Standard Warranty :
5 Years or 4000 cycle life whichever comes first due for warranty
